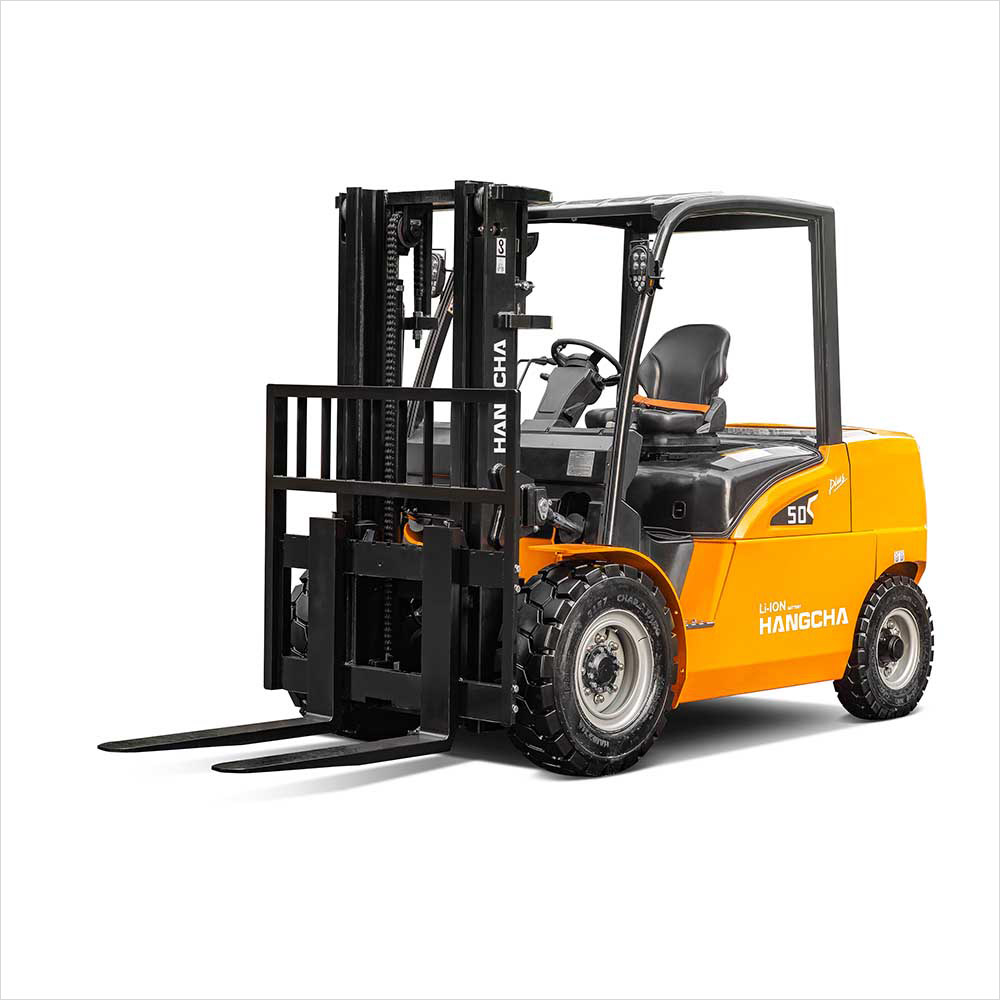

The XH series heavy-duty high-voltage lithium battery special forklift inherits the advantages of the XH heavy-duty series and adopts the CATL standard box. This tonnage industry is the one that uses a dual-water cooling system for the motor and battery. It has super heat dissipation performance and can meet 24h non-stop operation. It is very suitable for various high-temperature environments such as ship cabins and other airtight and high-temperature environments (even the operating environment temperature can reach 50°C), heavy attachments such as paper roll clamps, and operations in front of smelting furnaces.
Description
The XH series heavy-duty high-voltage lithium battery special forklift inherits the advantages of the XH heavy-duty series and adopts the CATL standard box. This tonnage industry is the one that uses a dual-water cooling system for the motor and battery. It has super heat dissipation performance and can meet 24h non-stop operation. It is very suitable for various high-temperature environments such as ship cabins and other airtight and high-temperature environments (even the operating environment temperature can reach 50°C), heavy attachments such as paper roll clamps, and operations in front of smelting furnaces.

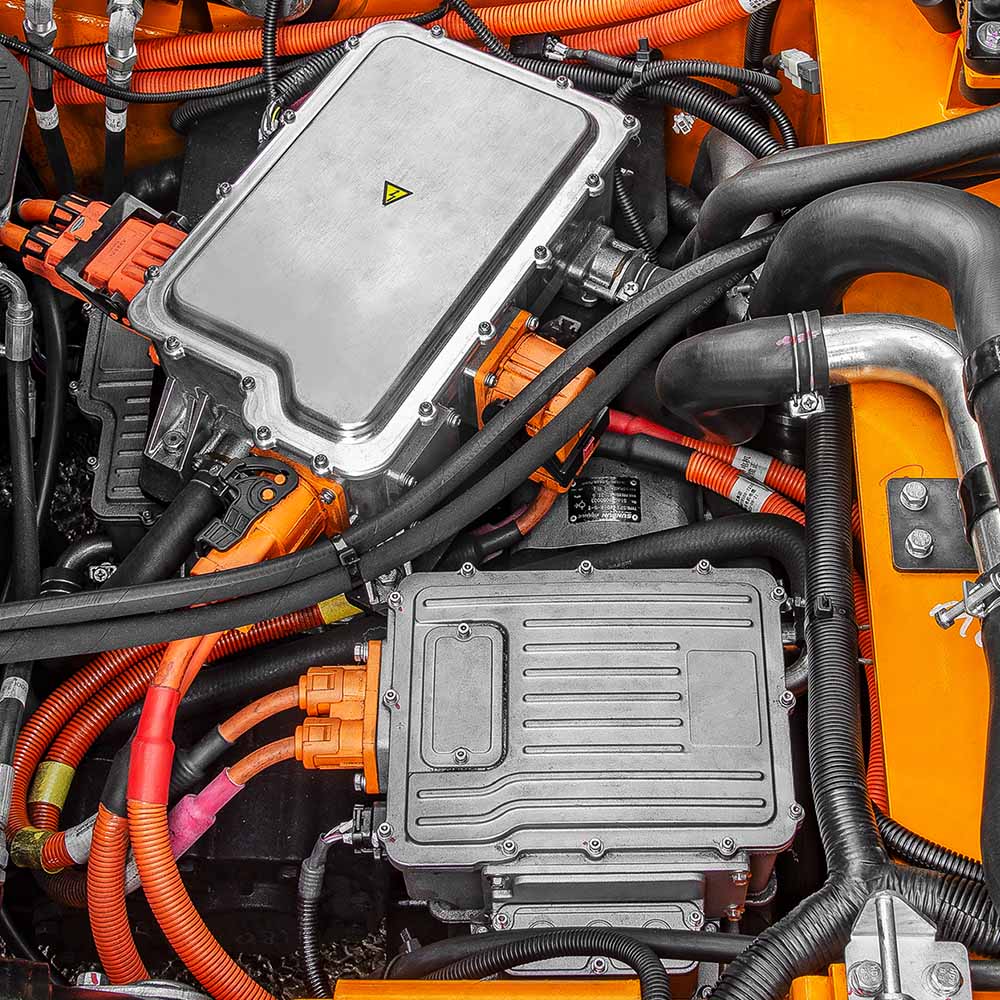

Both the drive and operating systems are vehicle-grade permanent magnet synchronization systems. Equipped with a high speed ratio gearbox, the driving speed, lifting speed, upslope degree and acceleration performance surpass that of internal combustion vehicles.

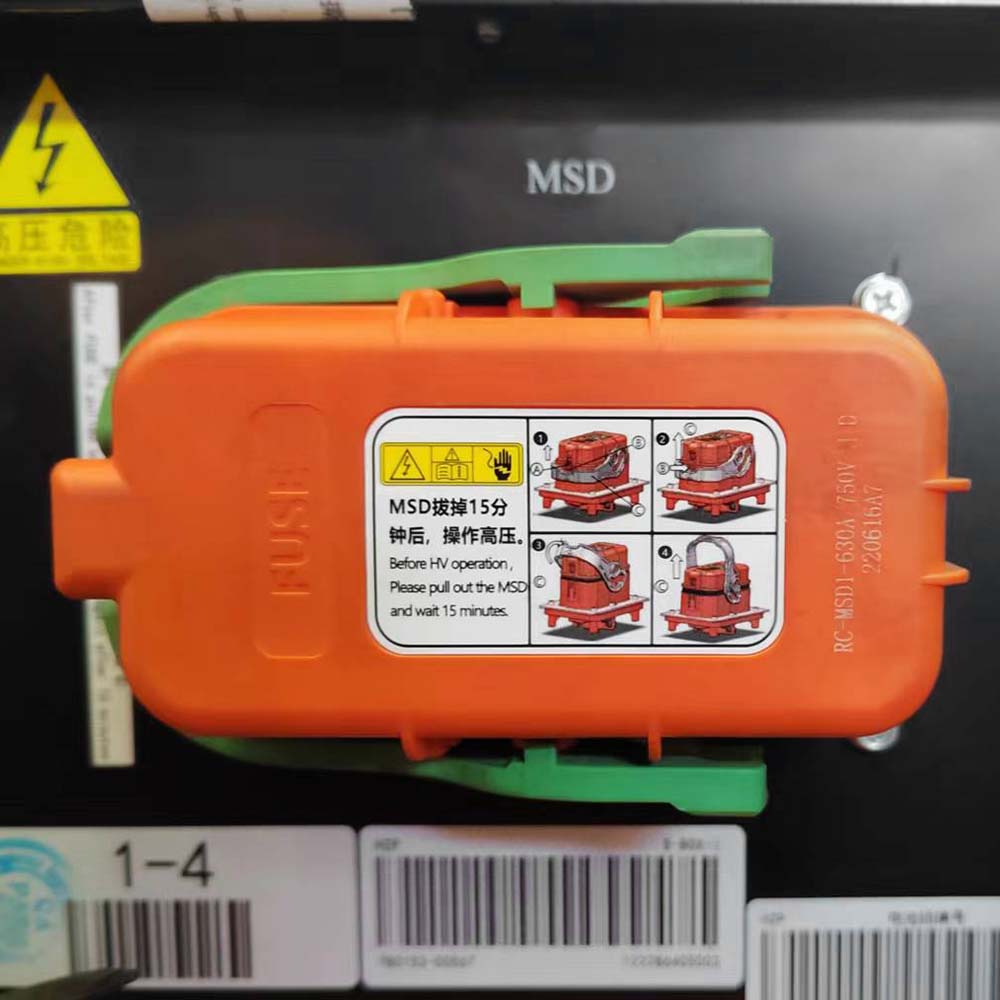

The electrical system is equipped with high-voltage interlocks, insulation detection, offering vehicle-grade safety measures. The MSD maintenance switch enables one-click power-down and safer maintenance;

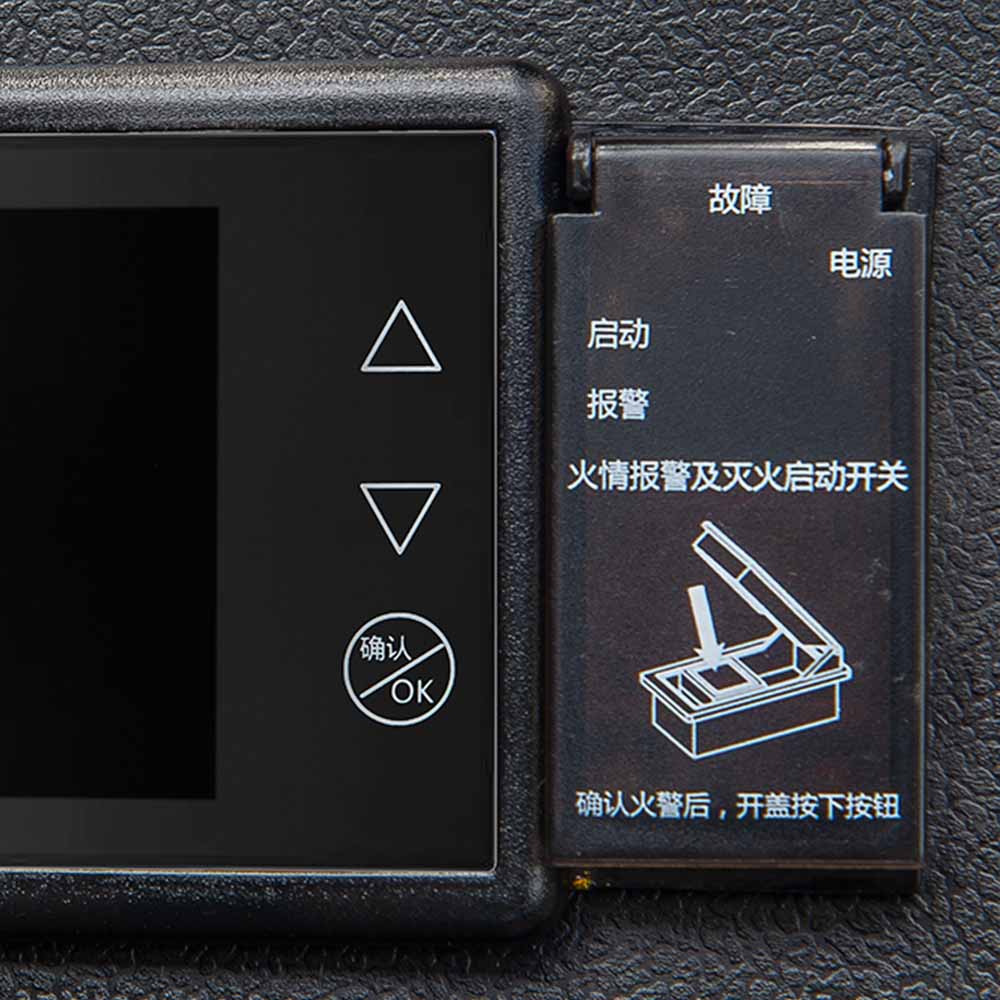

All CATL lithium batteries are equipped with standard automatic battery fire extinguishing devices, allowing higher safety in use.

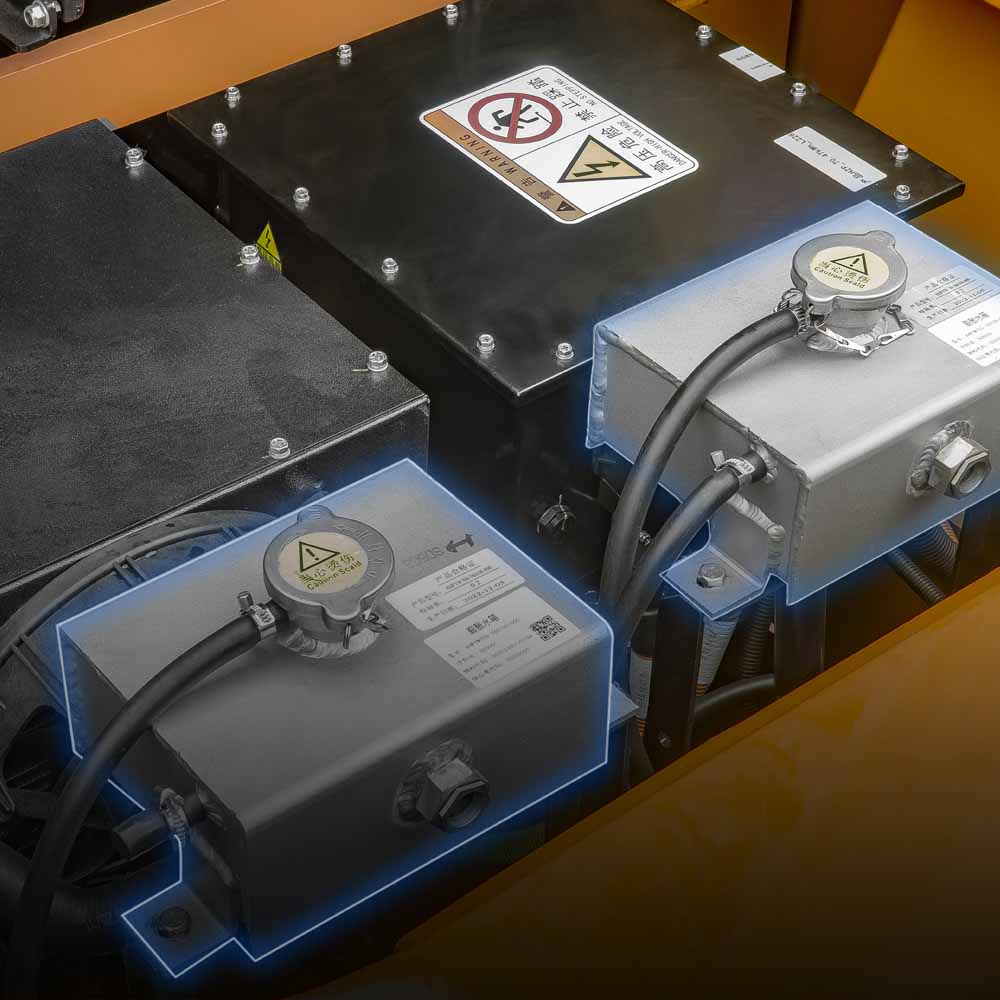

The water cooling system keeps the battery at the best working temperature of about 30°C, with high efficiency, slow decay and long life.

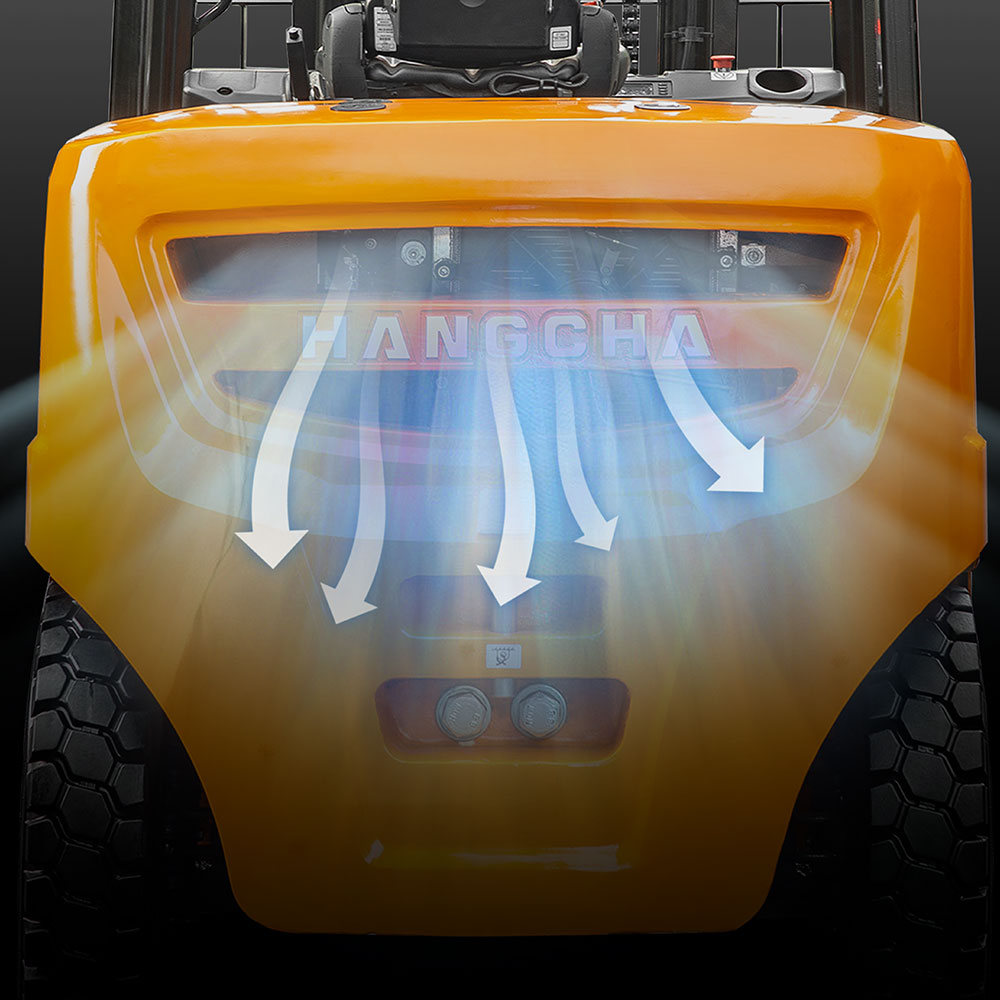

The large ventilation opening designed for internal combustion forklifts allows better heat dissipation of the battery and the motor.
The heat dissipation area of the air outlet is 7.5 times that of ordinary high-voltage electric truck. The working temperature of the motor/electric control + battery is lower than that of ordinary high-voltage electric truck by more than 10%.
